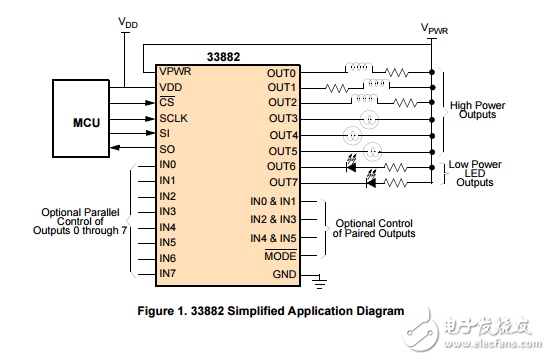

The 33882 is a smart 6 output low-side switch able to control system loads up to 1.0 A. The six outputs can be controlled via both serial peripheral interface （SPI） and parallel input control， making the device attractive for fault tolerant system applications. There are two additional 30 mA low-side switches with SPI diagnostic reporting （parallel input control only）。 The 33882 is designed to interface directly with industry standard microcontrollers via SPI to control both inductive and incandescent loads. Outputs are configured as open drain power MOSFETs incorporating internal dynamic clamping and current limiting. The device has multiple monitoring and protection features， including low standby current， fault status reporting， internal 52 V clamp on each output， output specific diagnostics， and protective shutdown. Additionally， it has a mode select pin affording a dual means of input control.
