Xilinx公司的Zynq?-7000系列是基于Xilinx全編程的系統級芯片(SoC)架構,集成了功能豐富的雙核或單核ARM? Cortex?-A9處理系統(PS)和28nm Xilinx可編程邏輯.ARM? Cortex?-A9 CPU是處理系統的心臟,包括了片上存儲器,外接存儲器接口和各種外設連接接口.主要用在汽車輔助駕馭,駕馭信息和娛樂系統,廣播照相機,工業馬達控制,工業網絡和機器視角,IP和智能照相機,LTE無線和基帶,醫療診斷和成像,多功能打印機以及視頻和夜視設備.本文介紹了Zynq-7000 FPGA主要特性和架構圖,以及Zybo Zynq-7000 ARM/FPGA SoC培訓板主要特性和優勢,主要元件分布圖與電路圖.

The Zynq?-7000 family is based on the Xilinx All Programmable SoC architecture. These products integrate a feature-rich dual-core or single-core ARM? Cortex?-A9 based processing system (PS) and 28 nm Xilinx programmable logic (PL) in a single device. The ARM Cortex-A9 CPUs are the heart of the PS and also include on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces.

The Zynq-7000 family offers the flexibility and scalability of an FPGA, while providing performance, power, and ease of usetypically associated with ASIC and ASSPs. The range of devices in the Zynq-7000 family allows designers to targetcost-sensitive as well as high-performance applications from a single platform using industry-standard tools. While eachdevice in the Zynq-7000 family contains the same PS, the PL and I/O resources vary between the devices. As a result, theZynq-7000 and Zynq-7000S SoCs are able to serve a wide range of applications including:

? Automotive driver assistance, driver information, and infotainment

? Broadcast camera

? Industrial motor control, industrial networking, and machine vision

? IP and Smart camera

? LTE radio and baseband

? Medical diagnostics and imaging

? Multifunction printers

? Video and night vision equipment

The Zynq-7000 architecture enables implementation of custom logic in the PL and custom software in the PS. It allows forthe realization of unique and differentiated system functions. The integration of the PS with the PL allows levels ofperformance that two-chip solutions (e.g., an ASSP with an FPGA) cannot match due to their limited I/O bandwidth, latency,and power budgets.

Xilinx offers a large number of soft IP for the Zynq-7000 family. Stand-alone and Linux device drivers are available for theperipherals in the PS and the PL. The Vivado? Design Suite development environment enables a rapid productdevelopment for software, hardware, and systems engineers. Adoption of the ARM-based PS also brings a broad range ofthird-party tools and IP providers in combination with Xilinx’s existing PL ecosystem.

The inclusion of an application processor enables high-level operating system support, e.g., Linux. Other standard operatingsystems used with the Cortex-A9 processor are also available for the Zynq-7000 family.

The PS and the PL are on separate power domains, enabling the user of these devices to power down the PL for powermanagement if required. The processors in the PS always boot first, allowing a software centric approach for PLconfiguration. PL configuration is managed by software running on the CPU, so it boots similar to an ASSP.

Zynq-7000 FPGA主要特性:

Processing System (PS)

ARM Cortex-A9 Based

Application Processor Unit (APU)

? 2.5 DMIPS/MHz per CPU

? CPU frequency: Up to 1 GHz

? Coherent multiprocessor support

? ARMv7-A architecture

? TrustZone? security

? Thumb?-2 instruction set

? Jazelle? RCT execution Environment Architecture

? NEON? media-processing engine

? Single and double precision Vector Floating Point Unit (VFPU)

? CoreSight? and Program Trace Macrocell (PTM)

? Timer and Interrupts

? Three watchdog timers

? One global timer

? Two triple-timer counters

Caches

? 32 KB Level 1 4-way set-associative instruction and data caches(independent for each CPU)

? 512 KB 8-way set-associative Level 2 cache(shared between the CPUs)

? Byte-parity support

On-Chip Memory

? On-chip boot ROM

? 256 KB on-chip RAM (OCM)

? Byte-parity support

External Memory Interfaces

? Multiprotocol dynamic memory controller

? 16-bit or 32-bit interfaces to DDR3, DDR3L, DDR2, or LPDDR2memories

? ECC support in 16-bit mode

? 1GB of address space using single rank of 8-, 16-, or 32-bit-widememories

? Static memory interfaces

? 8-bit SRAM data bus with up to 64 MB support

? Parallel NOR flash support

? ONFI1.0 NAND flash support (1-bit ECC)

? 1-bit SPI, 2-bit SPI, 4-bit SPI (quad-SPI), or two quad-SPI (8-bit)serial NOR flash

8-Channel DMA Controller

? Memory-to-memory, memory-to-peripheral, peripheral-to-memory,and scatter-gather transaction support

I/O Peripherals and Interfaces

? Two 10/100/1000 tri-speed Ethernet MAC peripherals withIEEE Std 802.3 and IEEE Std 1588 revision 2.0 support

? Scatter-gather DMA capability

? Recognition of 1588 rev. 2 PTP frames

? GMII, RGMII, and SGMII interfaces

? Two USB 2.0 OTG peripherals, each supporting up to 12 Endpoints

? USB 2.0 compliant device IP core

? Supports on-the-go, high-speed, full-speed, and low-speedmodes

? Intel EHCI compliant USB host

? 8-bit ULPI external PHY interface

? Two full CAN 2.0B compliant CAN bus interfaces

? CAN 2.0-A and CAN 2.0-B and ISO 118981-1 standardcompliant

? External PHY interface

? Two SD/SDIO 2.0/MMC3.31 compliant controllers

? Two full-duplex SPI ports with three peripheral chip selects

? Two high-speed UARTs (up to 1 Mb/s)

? Two master and slave I2C interfaces

? GPIO with four 32-bit banks, of which up to 54 bits can be used withthe PS I/O (one bank of 32b and one bank of 22b) and up to 64 bits(up to two banks of 32b) connected to the Programmable Logic

? Up to 54 flexible multiplexed I/O (MIO) for peripheral pin assignments

Interconnect

? High-bandwidth connectivity within PS and between PS and PL

? ARM AMBA? AXI based

? QoS support on critical masters for latency and bandwidth control

Programmable Logic (PL)

Configurable Logic Blocks (CLB)

? Look-up tables (LUT)

? Flip-flops

? Cascadeable adders

36 Kb Block RAM

? True Dual-Port

? Up to 72 bits wide

? Configurable as dual 18 Kb block RAM

DSP Blocks

? 18 x 25 signed multiply

? 48-bit adder/accumulator

? 25-bit pre-adder

Programmable I/O Blocks

? Supports LVCMOS, LVDS, and SSTL

? 1.2V to 3.3V I/O

? Programmable I/O delay and SerDes

JTAG Boundary-Scan

? IEEE Std 1149.1 Compatible Test Interface

PCI Express? Block

? Supports Root complex and End Point configurations

? Supports up to Gen2 speeds

? Supports up to 8 lanes

Serial Transceivers

? Up to 16 receivers and transmitters

? Supports up to 12.5 Gb/s data rates

Two 12-Bit Analog-to-Digital Converters

? On-chip voltage and temperature sensing

? Up to 17 external differential input channels

? One million samples per second maximum conversion rate

圖1.Zynq-7000 FPGA架構圖

Zybo Zynq-7000 ARM/FPGA SoC培訓板

The Zybo (Zynq? Board) is a feature-rich, ready-to-use, entry-level embedded software and digital circuit development platform built around the smallest member of the Xilinx Zynq-7000 family, the Z-7010. The Z-7010 is based on the Xilinx? All Programmable System-on-Chip (AP SoC) architecture, which tightly integrates a dual-core ARM Cortex-A9 processor with Xilinx 7-series field programmable gate array (FPGA) logic. When coupled with the rich set of multimedia and connectivity peripherals available on the Zybo, the Zynq Z-7010 can host a whole system design. The on-board memories, video and audio I/O, dual-role USB, Ethernet and SD slot will have your design up-and-ready with no additional hardware needed. Additionally, six Pmod connectors are available to put any design on an easy growth path. The Zybo provides an ultra-low cost alternative to the ZedBoard for designers that don’t require the high-density I/O of the FMC connector, but still wish to leverage the massive processing power and extensibility of the Zynq AP SoC architecture.

Zybo Zynq-7000 ARM/FPGA SoC培訓板主要特性和優勢:

128 Mb Serial Flash w/ QSPI interface

16-bits per pixel VGA output port

240 KB Block RAM

28,000 logic cells

512 MB x32 DDR3 w/ 1050Mbps bandwidth

650 MHz dual-core Cortex?-A9 processor

80 DSP slices

Audio codec with headphone out, microphone and line in jacks

DDR3 memory controller with 8 DMA channels

Dual-role (Source/Sink) HDMI port

External EEPROM (programmed with 48-bit globally unique EUI-48/64? compatible identifier)

GPIO: 6 pushbuttons, 4 slide switches, 5 LEDs

High-bandwith peripheral controllers: 1G Ethernet, USB 2.0, SDIO

Low-bandwidth peripheral controller: SPI, UART, I2C

OTG USB 2.0 PHY (supports host and device)

On-board JTAG programming and UART to USB converter

On-chip dual channel, 12-bit, 1 MSPS analog-to-digital converter (XADC)

Six Pmod ports (1 processor-dedicated, 1 dual analog/digital)

Trimode (1Gbit/100Mbit/10Mbit) Ethernet PHY

Xilinx Zynq-7000 (XC7Z010-1CLG400C)

microSD slot (supports Linux file system)

圖2.Zybo Zynq-7000 ARM/FPGA SoC培訓板外形圖

Zybo Zynq-7000 ARM/FPGA SoC培訓板數字符件對應表:

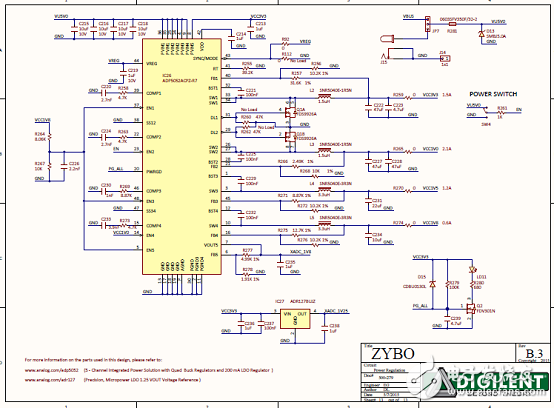

圖3.Zybo Zynq-7000 ARM/FPGA SoC培訓板電路圖(1)
